A2508系列
分享到：

A2508系列

间距mm： 2.5
电流A： 3
应用线径mm： 22~28AWG
产品详情


A2508线对板连接器厂家-电源连接器-IDC连接器-刺破式连接器-黑色连接器-工业设备连接器-PCB连接器

伟昌连接器-致力于20万进口连接器国产化-线对板连接器-PCB连接器-TRN伟昌电子连接器厂家

东莞伟昌电子定制连接器工厂批发供应现货价格优惠免费索样品

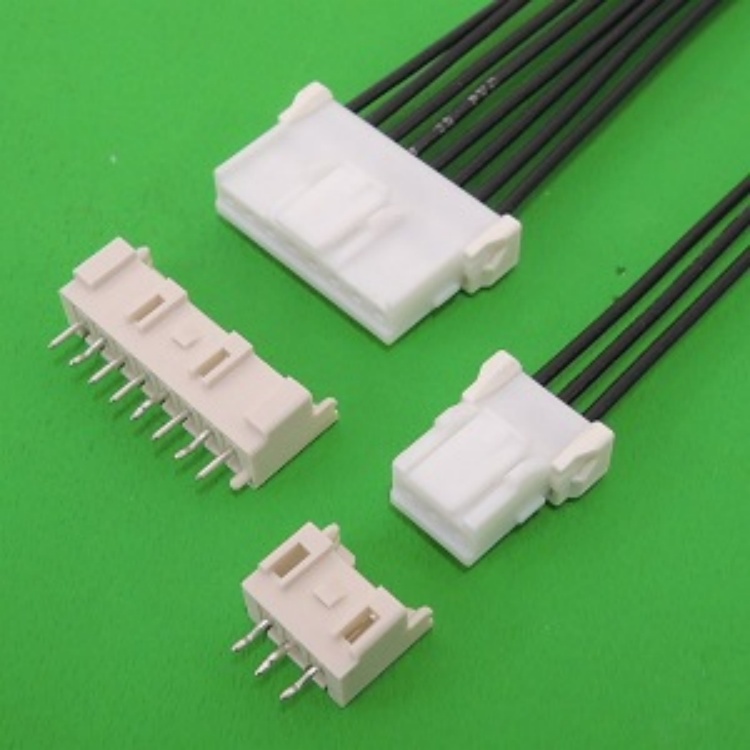

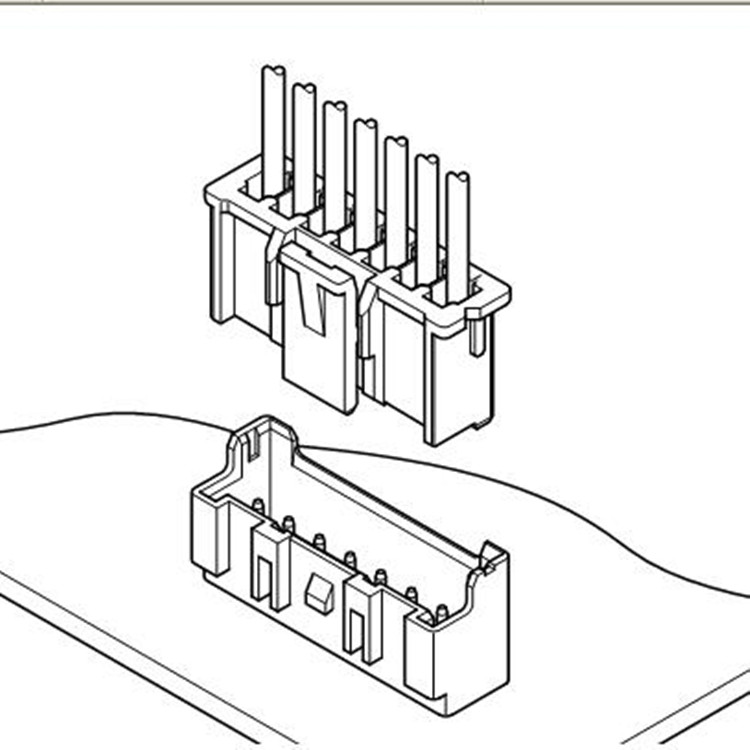

Mini-Lock Wire-to-Board Connector System

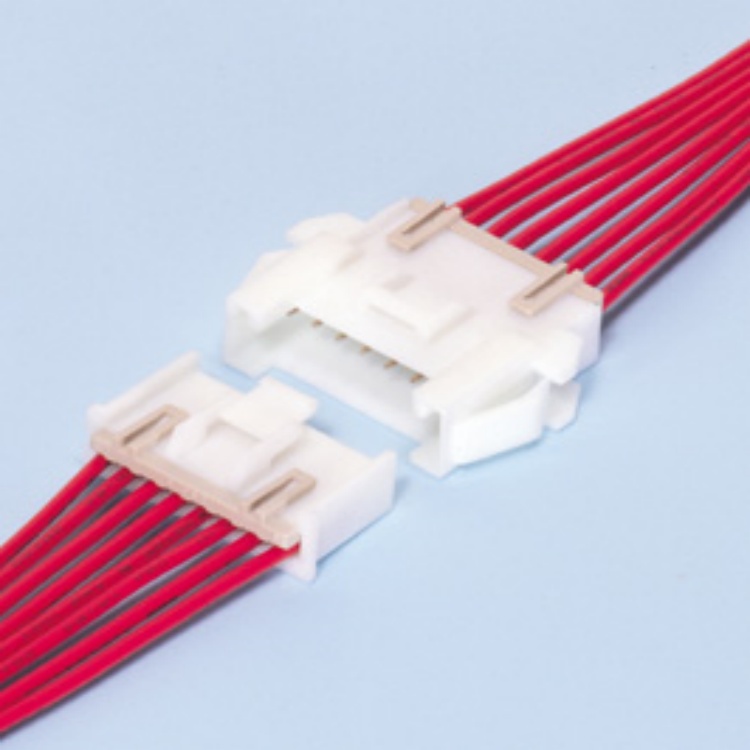

Mini-Lock Wire-to-Board/Wire-to-Wire 2.50mm pitch system is a versatile and proven product with a broad range of features that include TPA, positive-lock and glow wire to meet varying industry needs

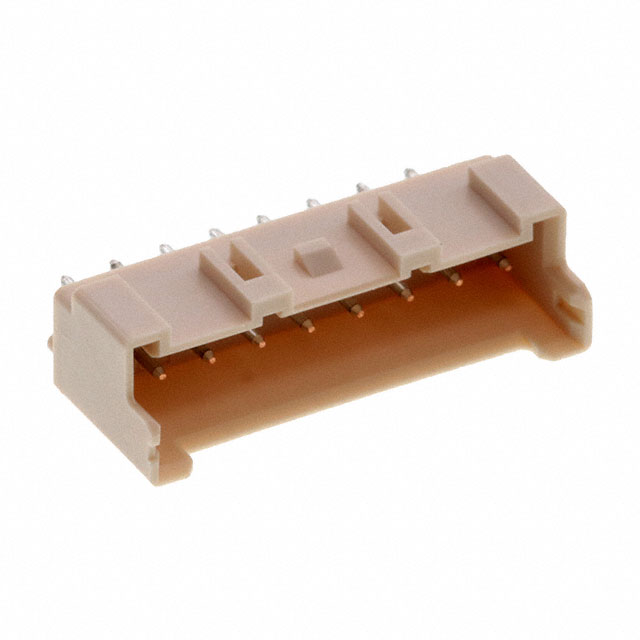

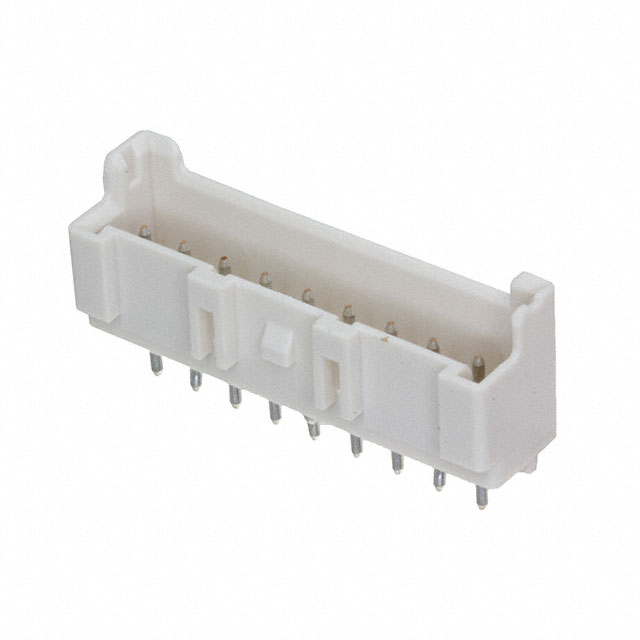

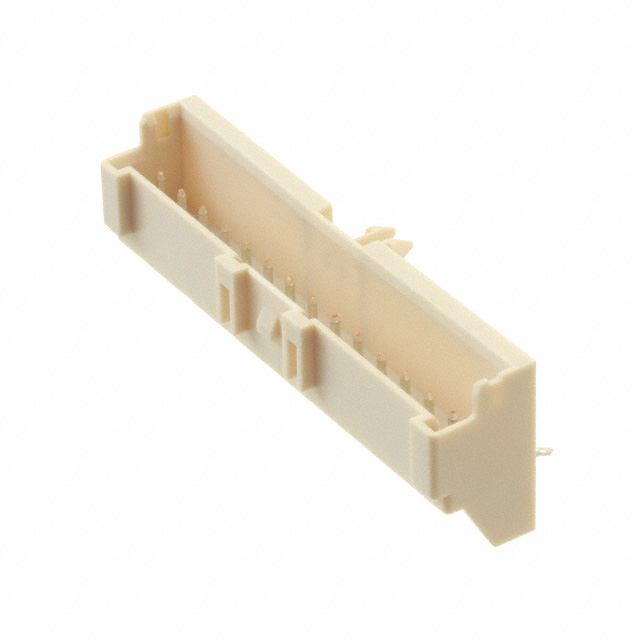

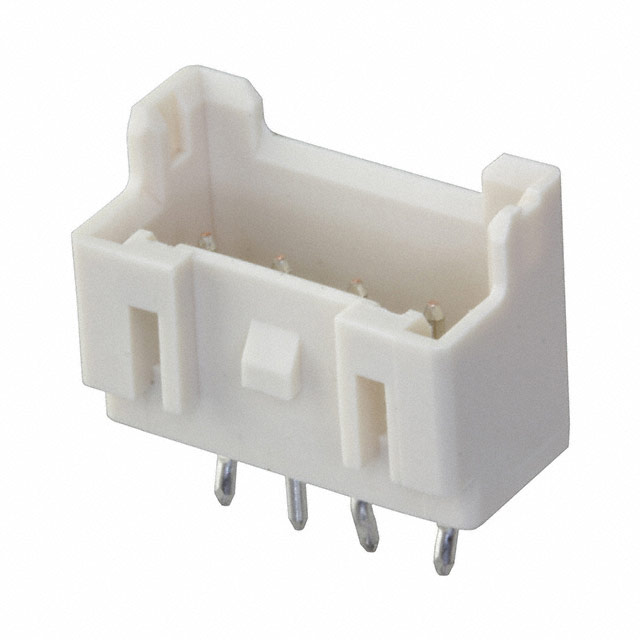

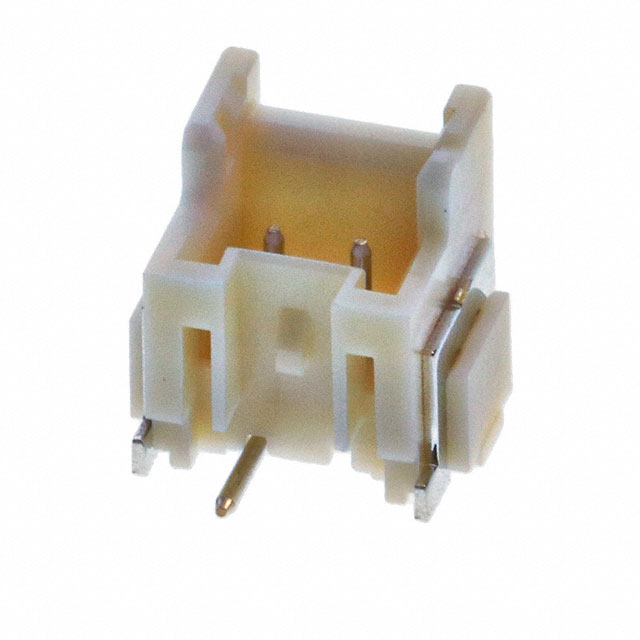

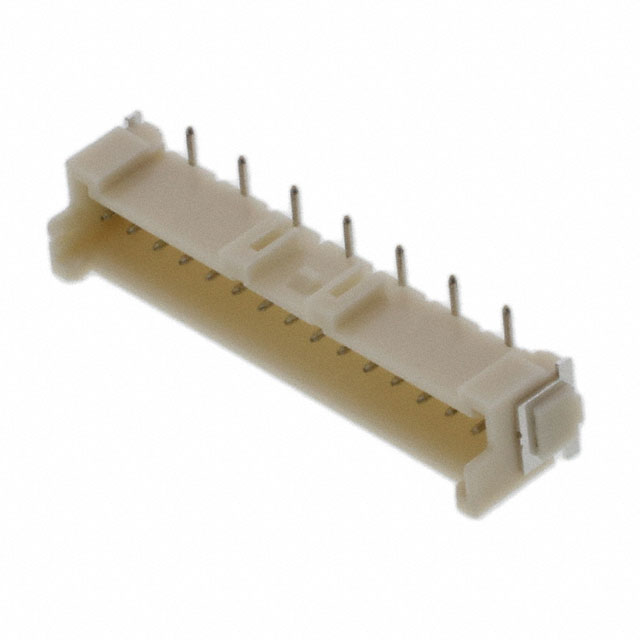

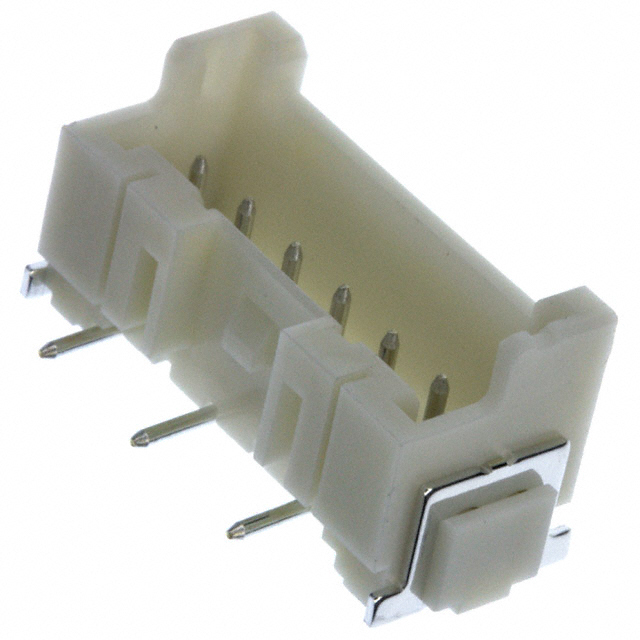

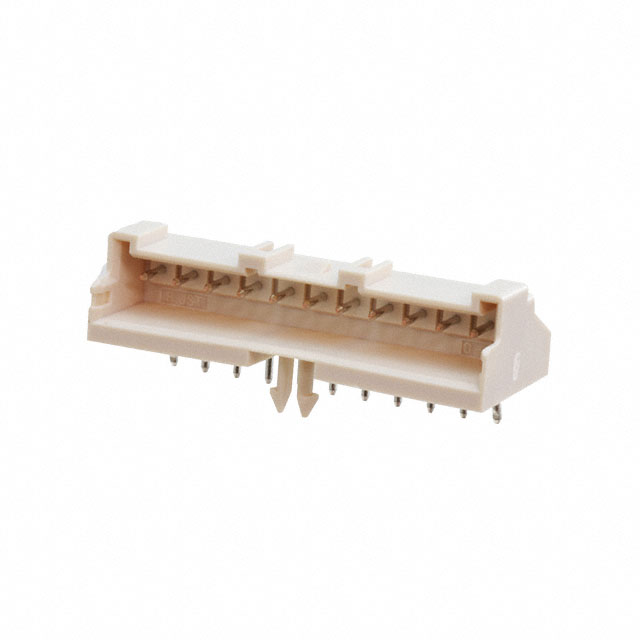

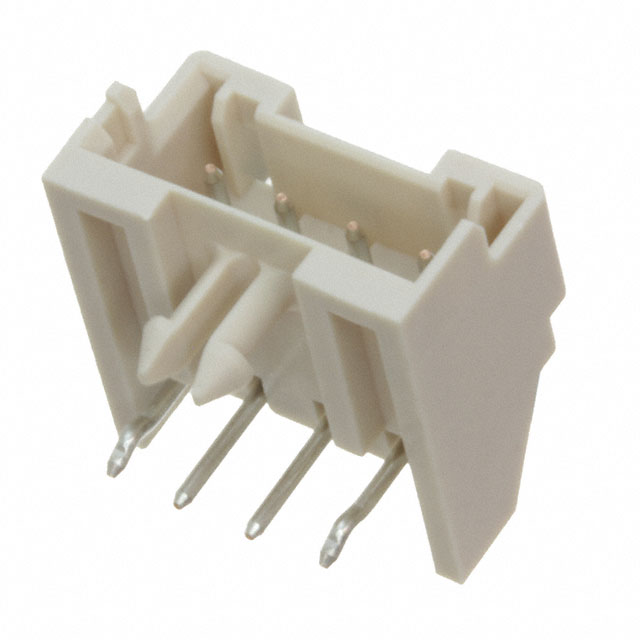

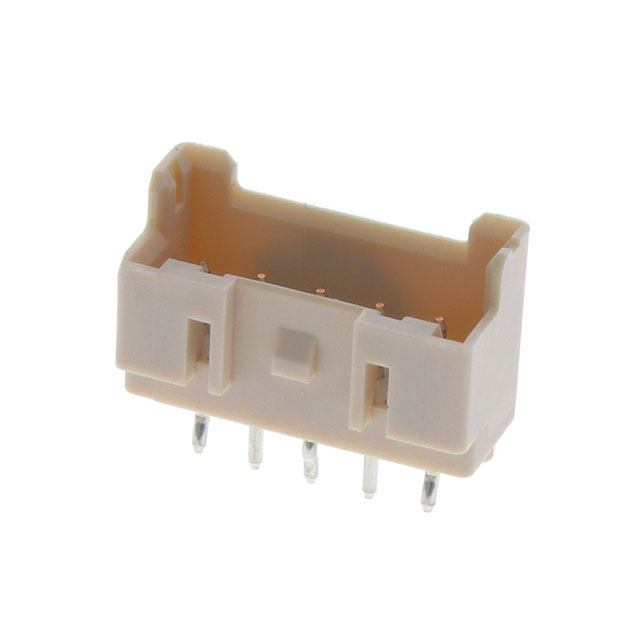

The header is tall and fully shrouded so as to prevent the resin used to coat the PC board coming into contact with the mating pins. Designed for use specifically with resin coated ("potted") PC boards.

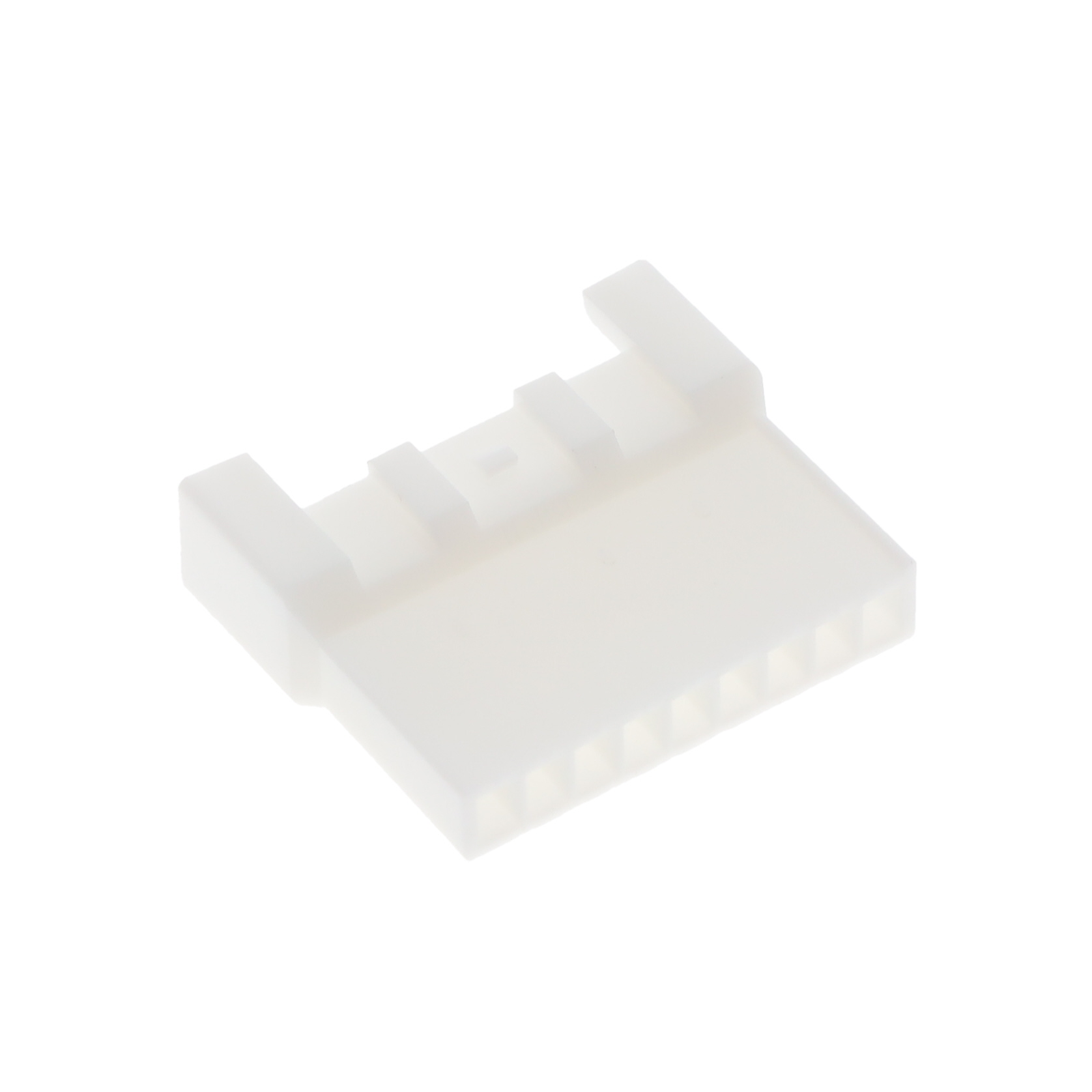

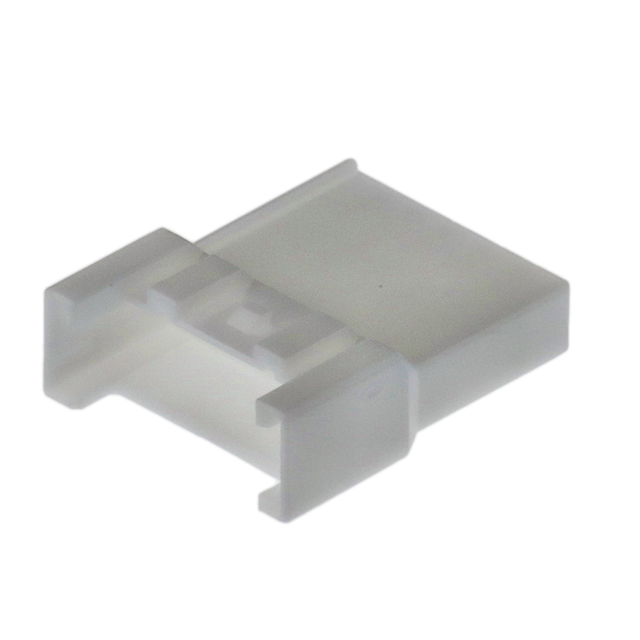

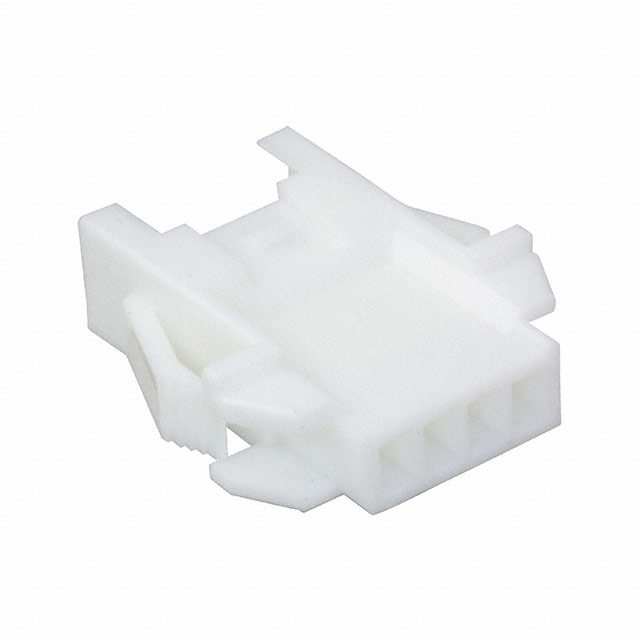

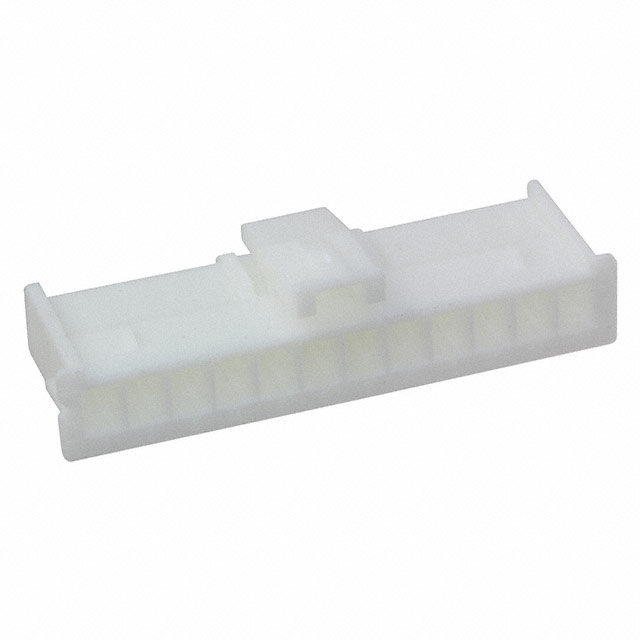

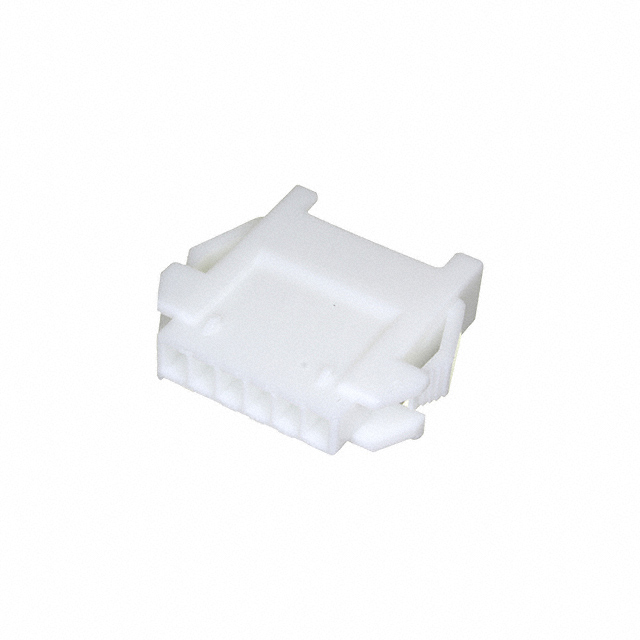

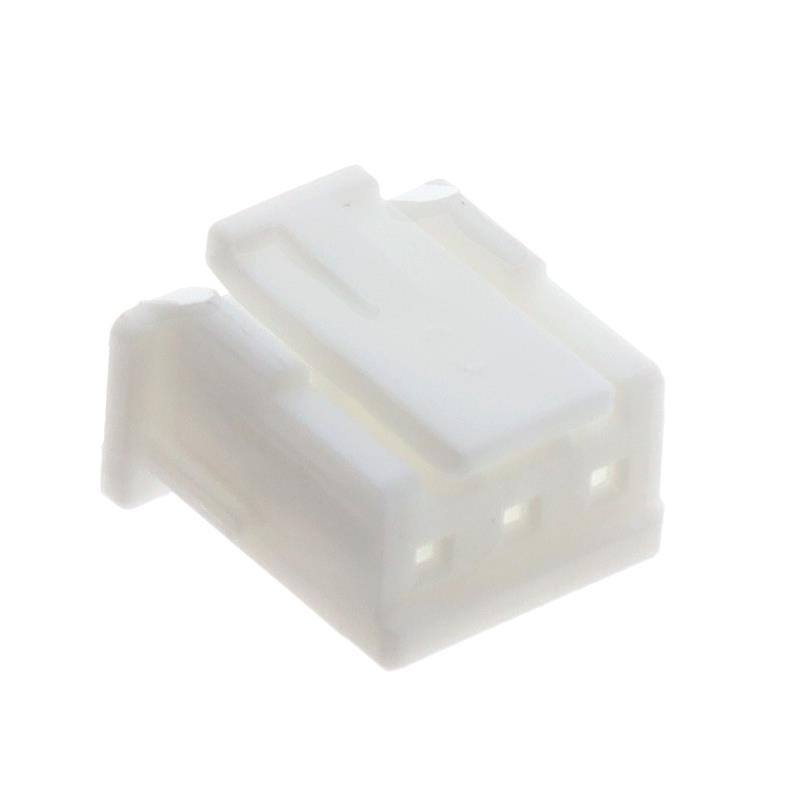

*The header is designed to accept XA mating receptacles.
*Secure locking device prevents accidental disconnection.

Product Profile
SeriesXA connector (High box type)
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeDisconnectable type
Crimp style, High-box type, With locking device
FeatureWith secure locking device

Specification
Pitch2.5 mm
Current rating3A (AWG#22)
Voltage rating250V
PC board

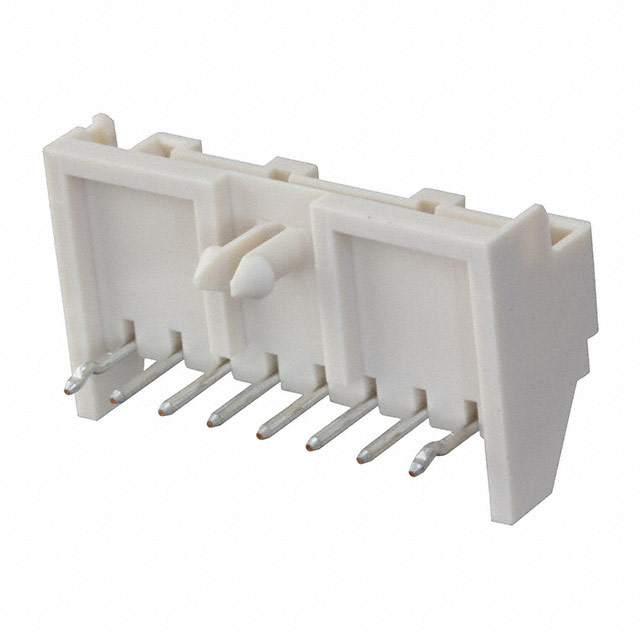

mounting direction		Top entry

A2508带锁扣系列东莞伟昌电子定制连接器工厂批发供应现货价格优惠免费索样品

线对板电源连接器

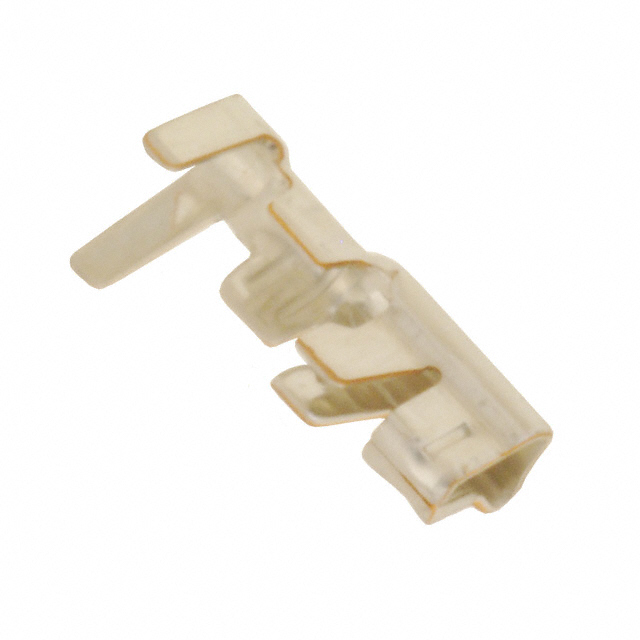

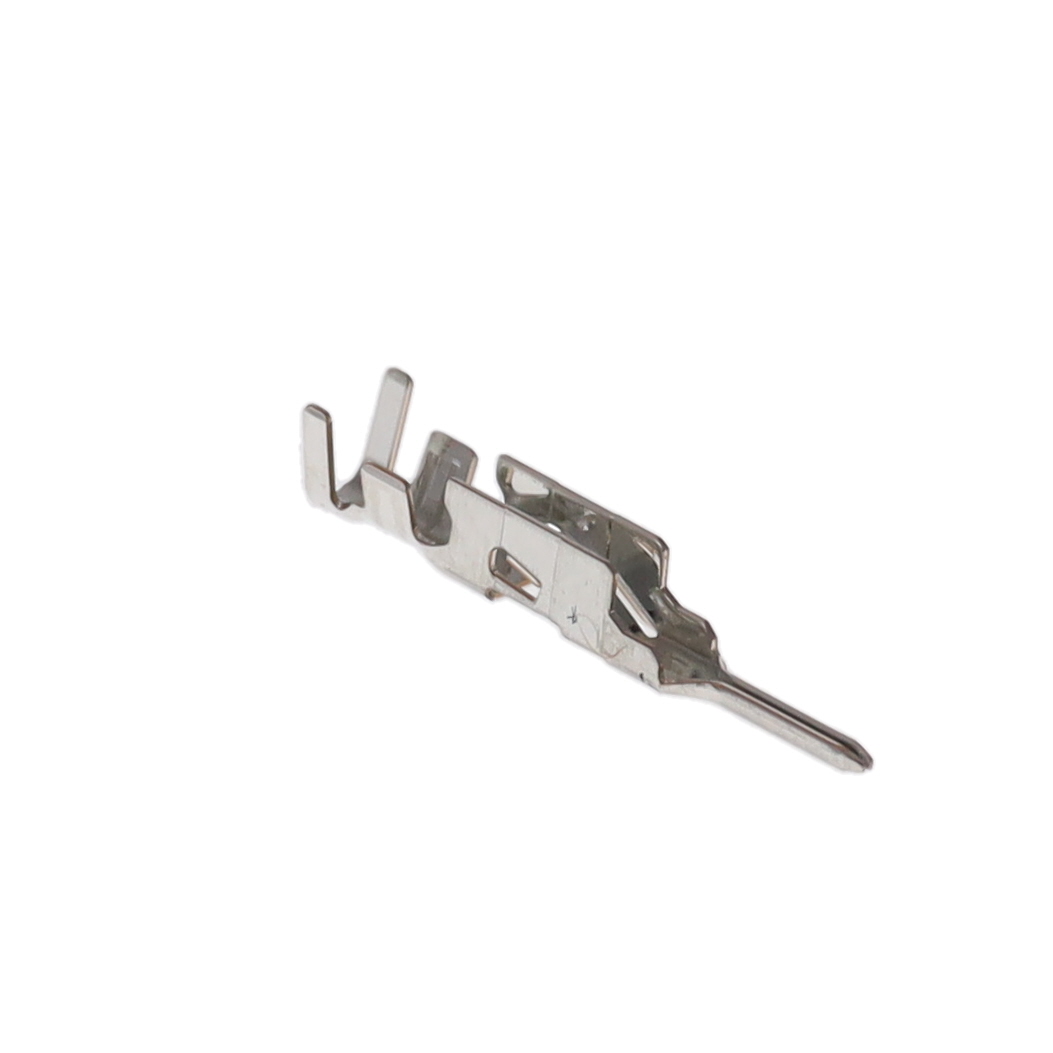

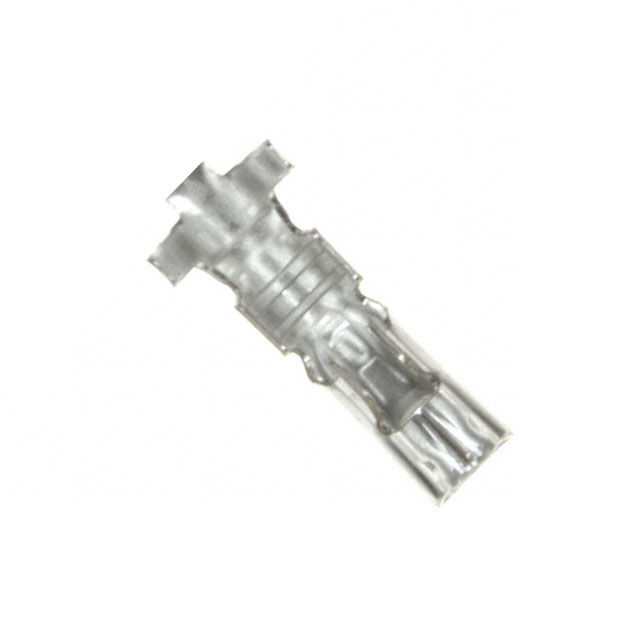

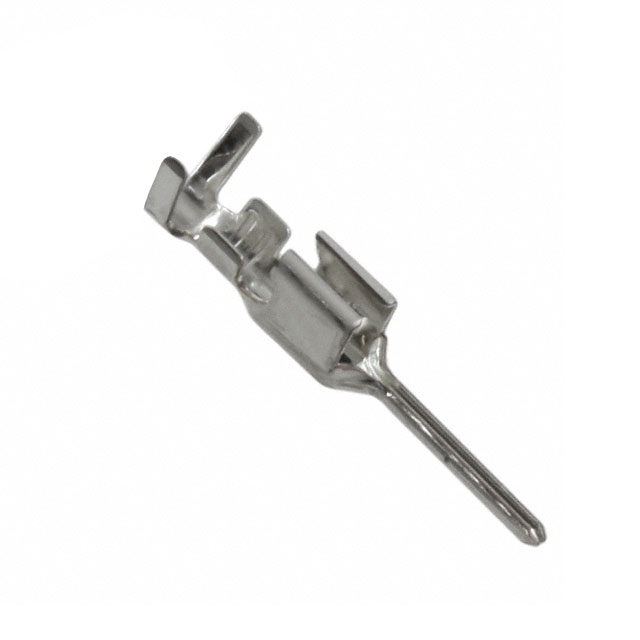

优势：磷铜端子可压接最大外径1.9mm规格线材，镀锡端子保证了更好导电性；胶壳PA66白色可定制环保无卤；wafer针座PA66塑胶，pin针可定制打k脚，带锁扣匹配保证产品抗震动性。

合高：直针/弯针-11.3/8.1mm。

应用：空调、洗衣机、智能家居、无人驾驶飞机、打印机接头、游戏机接插件、电动工具连接器、工业自动化设备、电机电源、液晶显示器。
